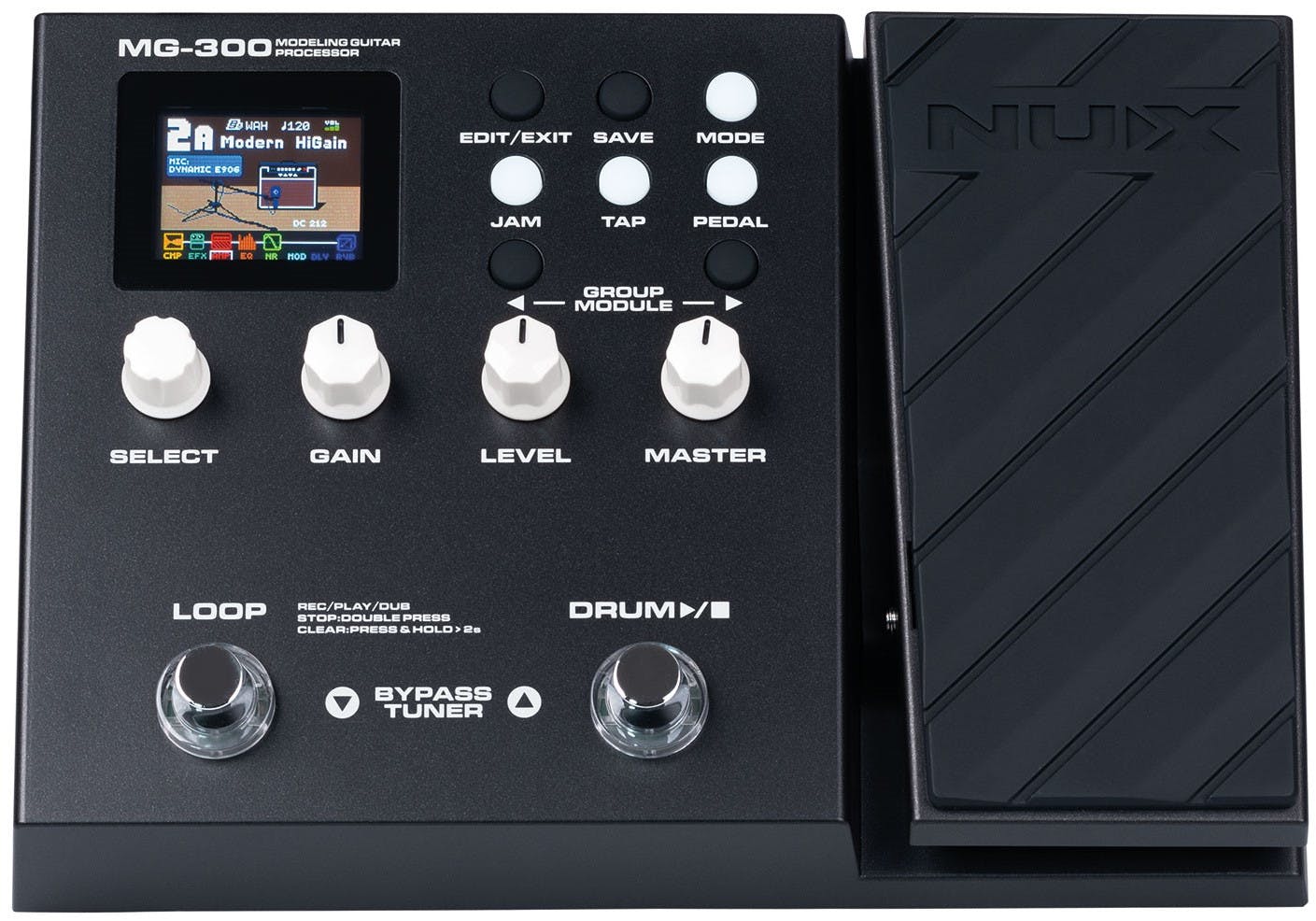

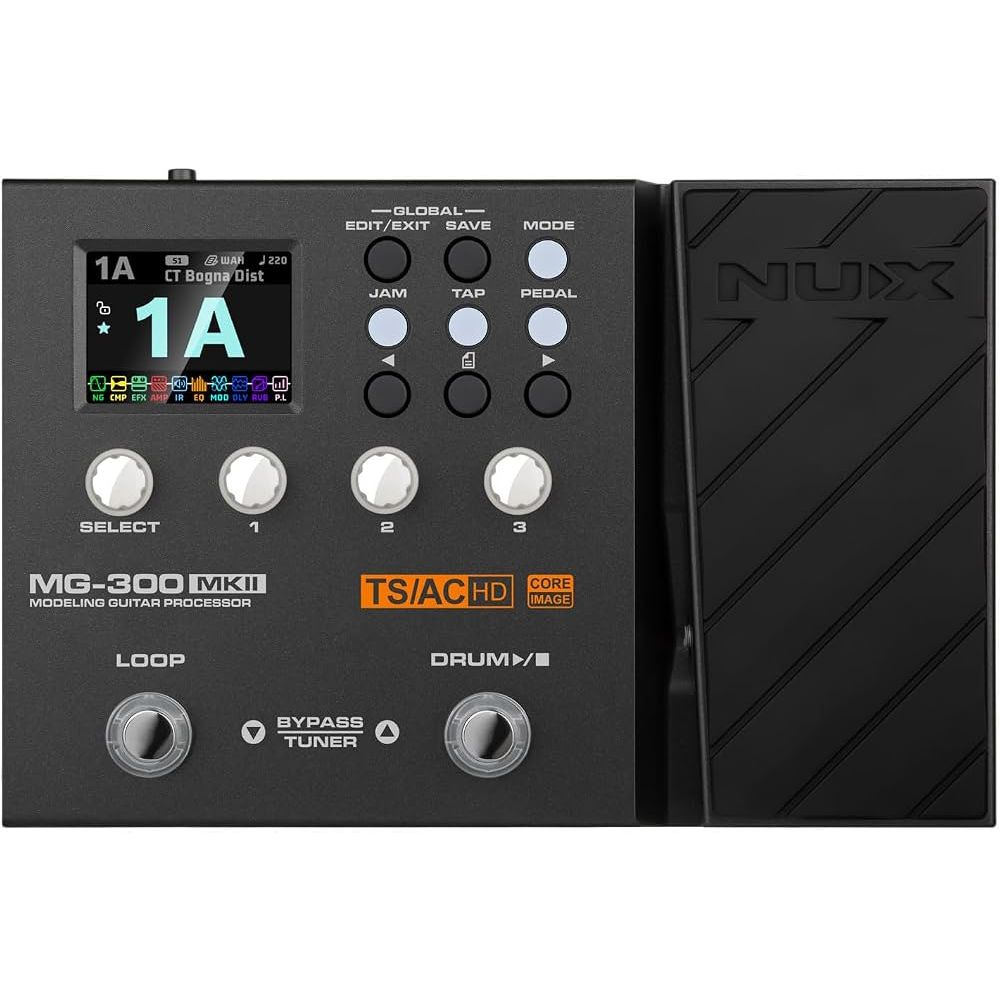

NUX MG-300 Guitar Multi Effects Processor Pedal

The NU-X MG-300 is a compact yet powerful live multi-effects processor, recording tool and practice companion for guitar players. Integrated effects sections include Drive, Amp Simulation, I.R cabinet simulation, Modulation, Delays & Reverbs with a host of options within each category. Audio modelling is based on the NU-X TSAC algorithm, which delivers high definition analogue circuit simulation for pro quality guitar tones. An expression pedal covers wah and swell effects amongst other possibilities. All settings can be edited onboard or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations. For live or rehearsal backing, the built-in Jam function has a fully featured drum machine and phrase looper. To integrate with a DAW studio suite, the USB also functions as a high quality audio interface, completing the studio-ready guitar rig. The main output has options for guitar amplifiers, D.I to studio equipment or straight to a pair of headphones. On-the-fly controls and a full colour display complete the package, providing a comprehensive and affordable guitar workstation in a very portable format.

• Multi-functional controls and display
• USB audio interface and PC/Mac editor
• TSAC pre-effects and amp modelling

• Core image modulation, delay and reverb effects
• Fully-featured drum machine and looper
• I.R. cabinet simulation (importable)

• Power supply 9Vdc, 260mA pin-negative (adaptor included)
• Inputs 6.3mm jack (guitar), 3.5mm jack (aux input)
• USB port Micro-USB for audio interface and PC/Mac editing
• Sampling format 48kHz, 24-bit
• Frequency response 20Hz - 20kHz (±1dB)
• Output 6.3mm jack to mixer, amp or headphones

• THD +N<0.03%
• Dynamic range 110dB
• Input level -20dB
• Output level -10dB
• Dimensions 230 x 160 x 58mm
• Weight 754g
