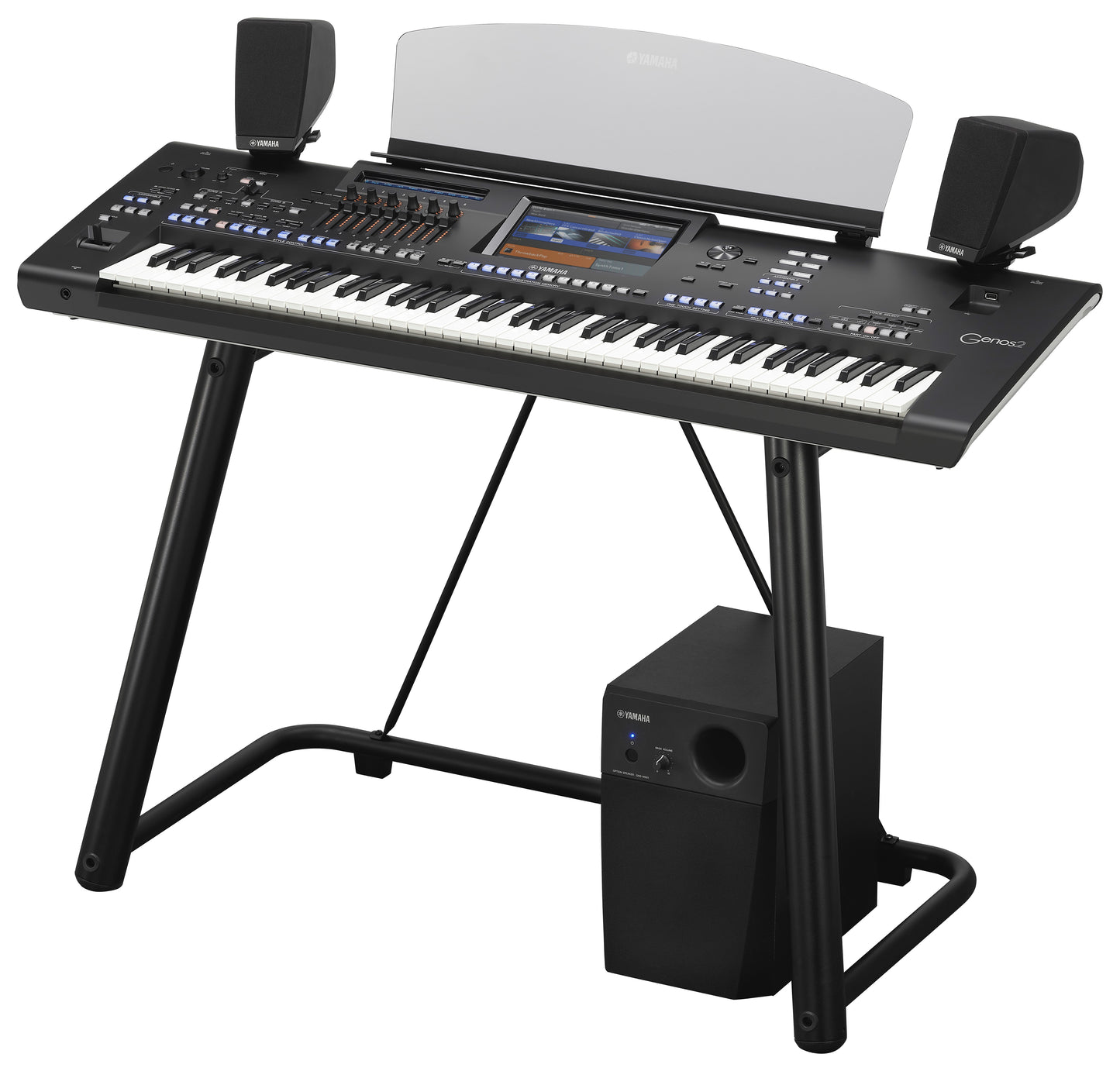

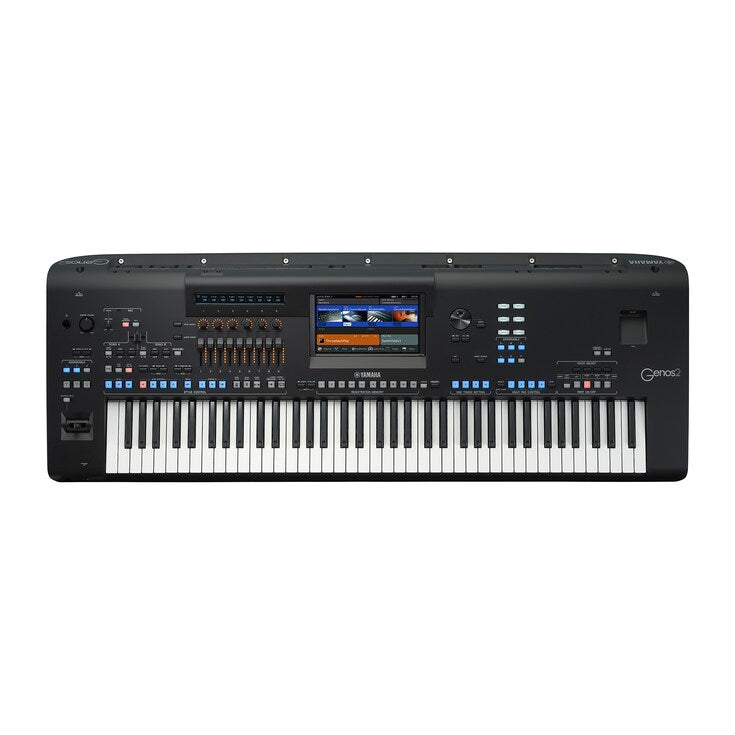

Yamaha Genos2 Workstation Keyboard

Pushing the boundaries of Arranger Workstation sound, our new flagship, Genos2, includes the legendary DX7 FM technology, cut- ting-edge Ambient Drums and Stein- berg's acclaimed REVelation Reverb. With Style Dynamics Control you're in charge of the energy and dynam- ics of all 800 preset Styles, bringing a whole new musical dimension to Style playing. Together with the new brighter, anti-reflective display and Live Control LEDs, the features of Genos2 combine to deliver the rich- est of musical

Genos
Size/Weight

Dimensions - Width 1,234 mm (48-9/16"), Height 138 mm (5-7/16"), Depth 456 mm (17-15/16")
Weight - 13.0 kg (28 lb, 11 oz)
Packing Box - Width 1,460 mm (57-1/2"), Height 270 mm (10-5/8"), Depth 540 mm (21-1/4")
Control Interface

Keyboard - Number of Keys - 76
Keyboard - Type Organ (FSX), Initial Touch/Aftertouch
Keyboard - Touch Response Normal, Easy1, Easy2, Soft1, Soft2, Hard1, Hard2
Other Controllers

Joystick - Yes
Control Knobs - 6 Live Control knobs (Assignable)
Sliders - 9 Live Control sliders (Assignable), Cross Fader
Art. Switches - 3
Display Type - Main Display : TFT Color Wide VGA LCD | Sub Display: OLED (Live Control view)
Size - Main Display : 800 x 480 dots (9 inch) | Sub Display: 589 x 48 dots
Touch Screen - Main Display : Yes
Language - Main Display : English, German, French, Spanish, Italian | Sub Display: English
Panel Language - English
Voices

Tone Generation - Tone Generating Technology - AWM Stereo Sampling, AEM technology
Polyphony - Number of Polyphony (Max.) - 256 (max.) (128 for Preset Voice + 128 for Expansion Voice)
Preset - Number of Voices - 1,652 Voices + 58 Drum/SFX Kits
Preset - Featured Voices - 10 Revo! Drums/SFX, 76 Ensemble, 390 Super Articulation!, 75 Super Articulation2!, 82 MegaVoice, 40 Sweet!, 81 Cool!, 160 Live!, 24 Organ Flutes!
Compatibility

XG - Yes (for Song playback)
GS - Yes (for Song playback)
GM - GM (for Song playback)
GM2 - GM2 (for Song playback)
Part - Right 1, Right 2, Right 3, Left
Expandability

Capacity - Voice Yes (approx.3.0 GB)
Capacity - Style&Voice Set Yes (Internal Memory)
Effects

Types - Reverb - 59 Preset + 30 User
Types - Chorus - 107 Preset + 30 User
Types - DSP - Variation: 358 Preset(with VCM) + 30 User | Insertion 1–28: 358 Preset(with VCM) + 30 User
Types - Master Compressor - 5 Preset + 30 User
Types - Master EQ - 5 Preset + 30 User
Types - Part EQ - 28 Parts
Vocal Harmony Number of Presets - Vocal Harmony: 54 | Synth Vocoder: 20
Number of User Settings - 60 * The number is the total of Vocal Harmony and Synth Vocoder
Vocal Effect - Mic Effect: Noise Gate, Compressor, 3 Band EQ | Vocal Effect: 23
Accompaniment Styles
Preset

Number of Preset Styles - 550
Featured Styles - 491 Pro, 39 Session, 10 Free Play, 10 DJ
Fingering - Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control - INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
Other Features

One Touch Setting (OTS) - 4 for each Style
Chord Looper - Yes
Style Section Reset - Yes
Compatibility - Style File Format (SFF), Style File Format GE (SFF GE)
Multi Pads

Preset - Number of Multi Pad Banks 448 Banks x 4 PadsAudio - Audio Link - Yes
Songs

Preset - Number of Preset Songs - 9 Demo Songs, 11 Preset Songs
Recording - Number of Tracks - 16
Recording Function - Quick Recording, Multi Track Recording, Step Recording
Compatible Data Format - Playback - SMF (Format 0, Format 1) , XF
Compatible Data Format - Recording - SMF (Format 0), approx. 3 MB per Song
Functions

Audio Recorder/Player Playback - WAV (44.1 kHz, 16 bit, stereo), MP3 (44.1 kHz, 64/96/128/256/320 kbps, stereo)
Recording - WAV (44.1 kHz, 16 bit, stereo), approx. 0.8 GB (80 minutes) per Song
Time Stretch - Yes
Pitch Shift - Yes
Vocal Cancel - Yes
Voices Harmony/Echo - Yes
Arpeggio - Yes
Panel Sustain - Yes
Mono/Poly - Yes
Styles Style Creator -Yes
OTS Information - Yes
Multi Pads Multi Pad Creator - Yes
Registration

Number of Buttons - 10
Control - Registration Sequence, Freeze
Playlist - Number of Records - 2,500 (max.) Records per Playlist file
Songs Score Display Function - Yes
Lyrics Display Function - Yes
Search - Registration Bank
Overall Controls Metronome - Yes
Tempo Range - 5 – 500, Tap Tempo
Transpose - -12 – 0 – +12
Tuning - 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)
Octave Button - Yes
Scale Type - 9 Types
Sub Scale Setting - Yes
Miscellaneous

Direct Access - Yes
Text Display Function - Yes
Wallpaper Customization - Yes
Display Out - Yes (by using a commercially USB display adaptor) * For a list of compatible devices, access the “Yamaha Downloads” website. *Genos generates a 800 x 600 size image for external display. The size of Genos main display is 800 x 480, so there will always be blank areas at the top and bottom of the image.
Storage and Connectivity

Storage

Internal Memory - Yes (approx. 58 GB)
External Drives - USB flash drive
Connectivity

Headphones - Standard stereo phone jack (PHONES)
FOOT PEDAL - 1 (SUSTAIN), 2 (ART.1), 3 (VOLUME), Function assignable
Microphone - Yes (Combo Jack) , Phantom Power (+48V) available
MIDI - MIDI A (IN/OUT) , MIDI B (IN/OUT)
AUX IN - L/L+R, R
DIGITAL OUT - Yes (coaxial)
LINE OUT MAIN - (L/L+R, R) , SUB (1, 2) , SUB (3, 4 / AUX OUT)
USB TO DEVICE - Yes (x 3)
USB TO HOST - Yes
LAN - Yes (*) , Standards: IEEE802.11b/g/n (IEEE802.11n 5GHz: not compatible) *May not be included, depending on your area. Check with your Yamaha dealer.
