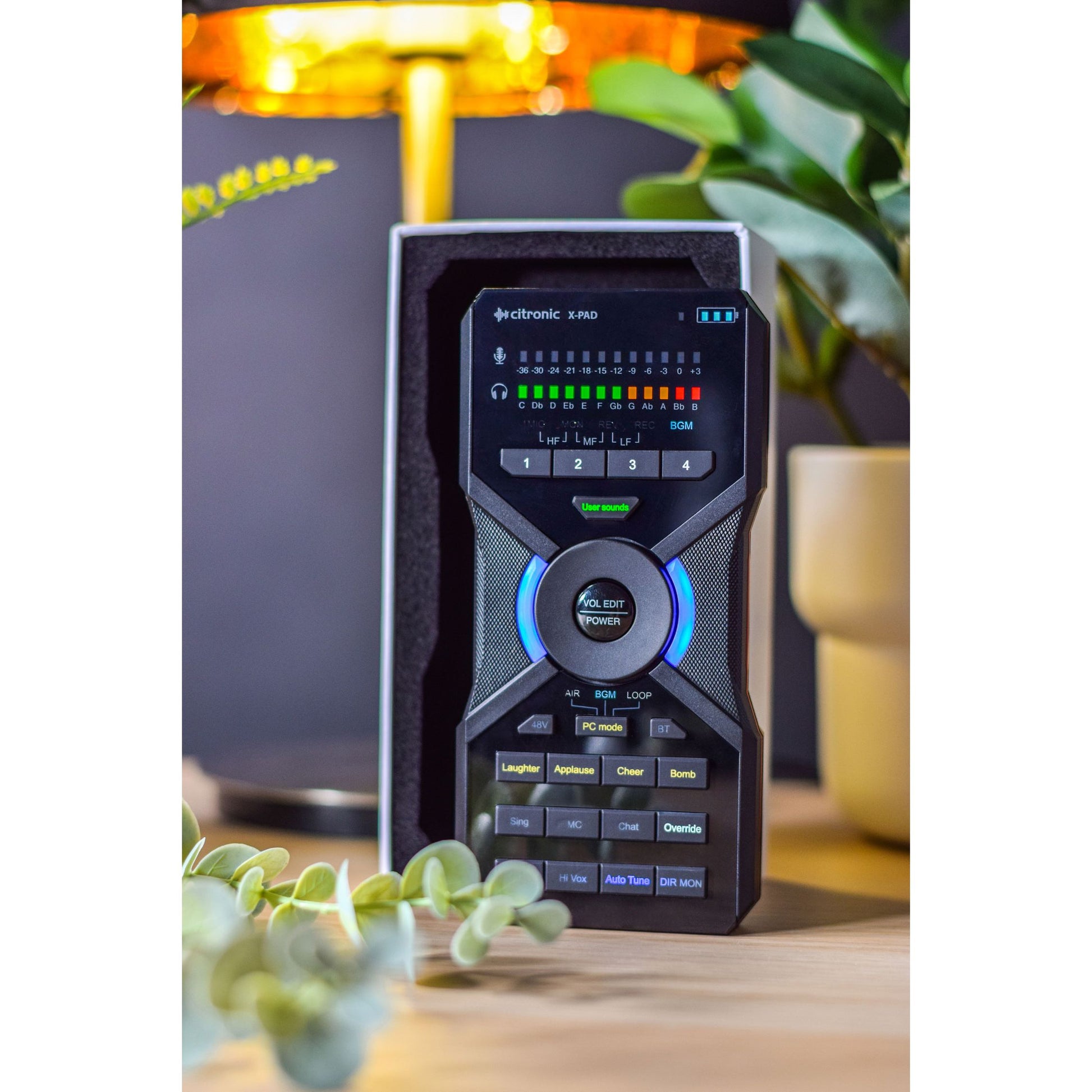

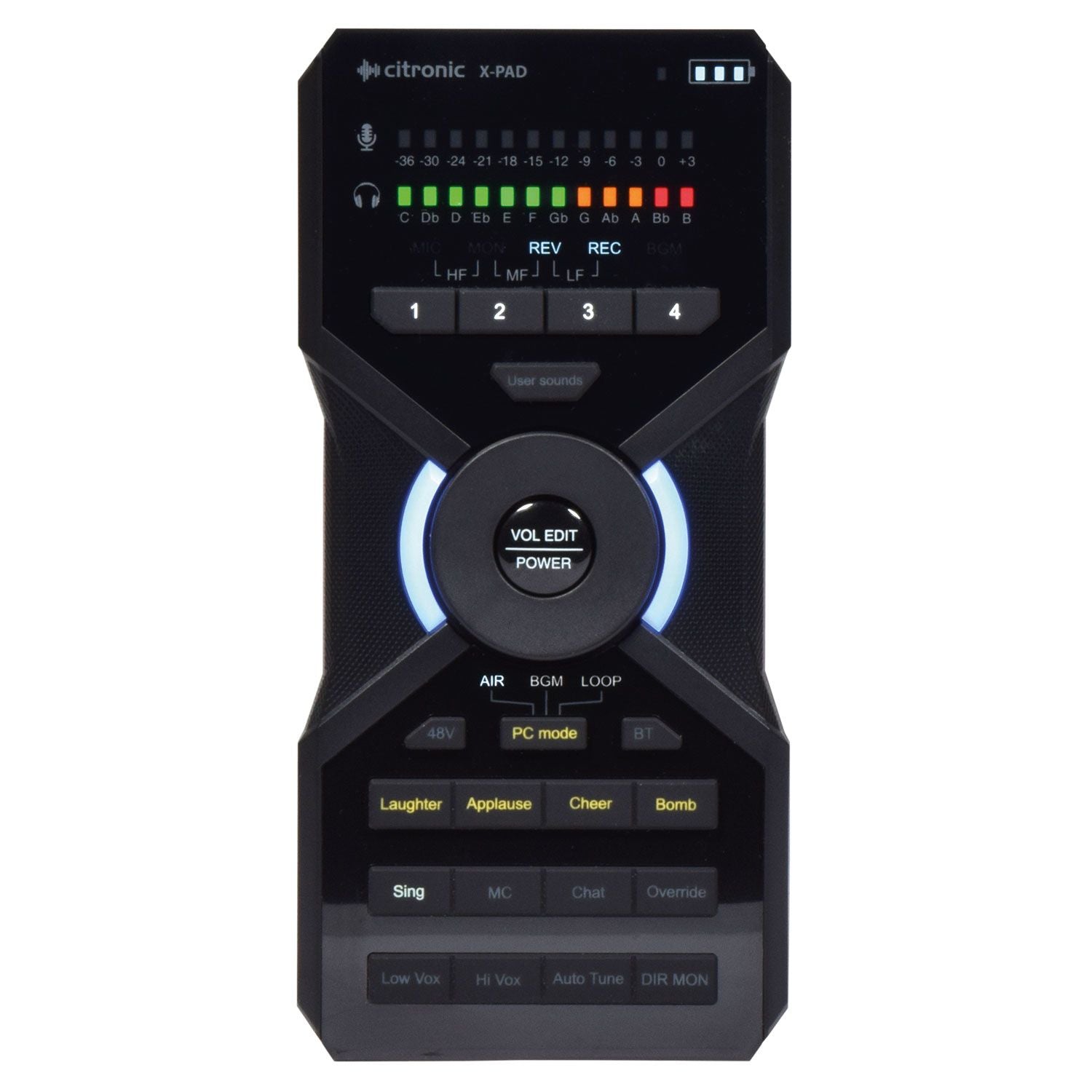

Citronic X-PAD Portable Audio Device

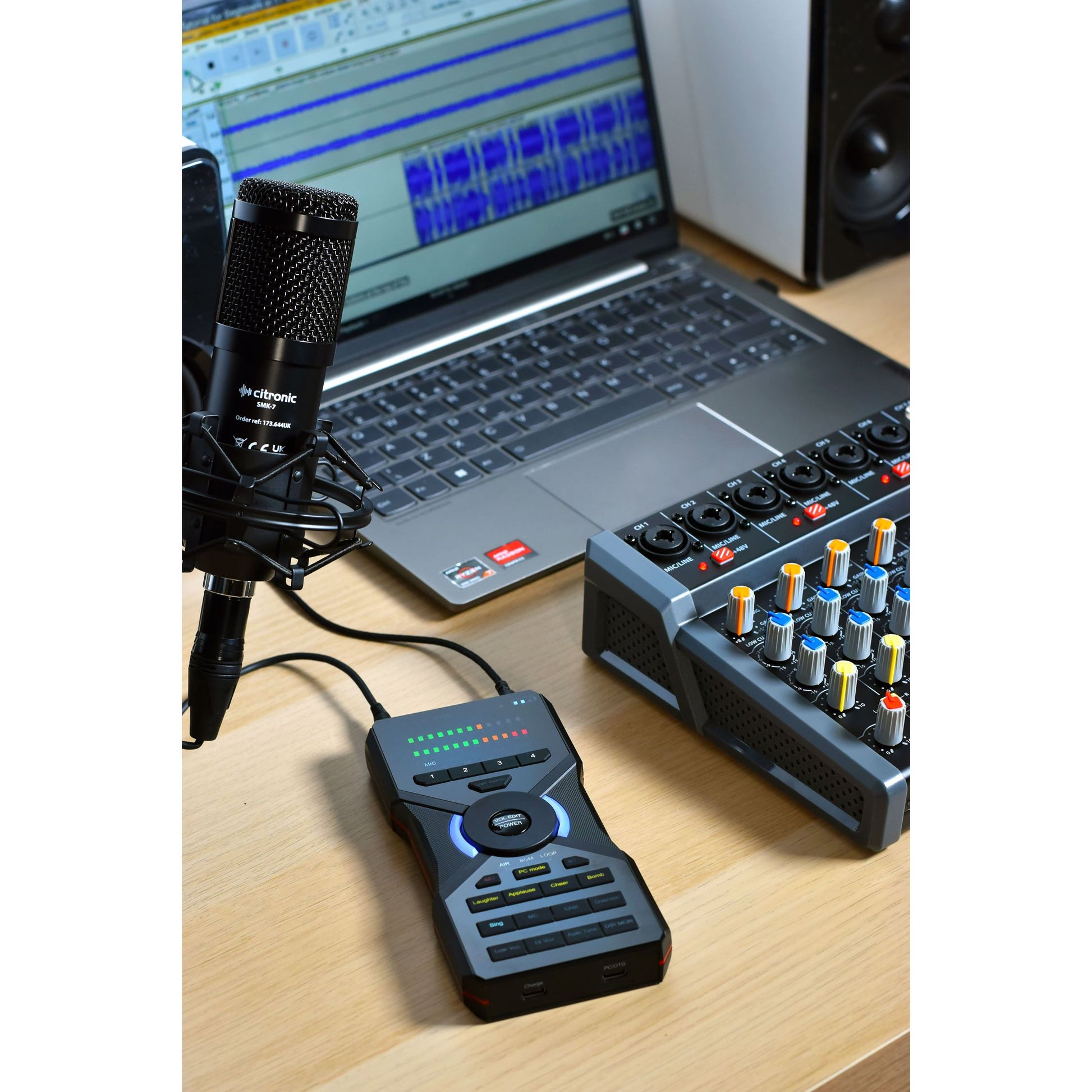

X-PAD brings digital sound recording and studio quality effects within reach of podcasters, mobile social media, and on-line gamers in the form of a rechargeable, pocket-sized audio tool. USB-C connection to a smart phone or laptop computer lets you record with professional features such as EQ tone controls, reverb & echo effects, pitch change and auto-tune for singers. Multiple input/output options also mean that this amazing gadget can lend itself to almost any scenario.

• Preset vocal effects and Auto-Tune
• USB-C link to smart phone or laptop
• Bluetooth connection for playback
• Rechargeable via dedicated USB-C socket
• Preset and user-recorded sound effects

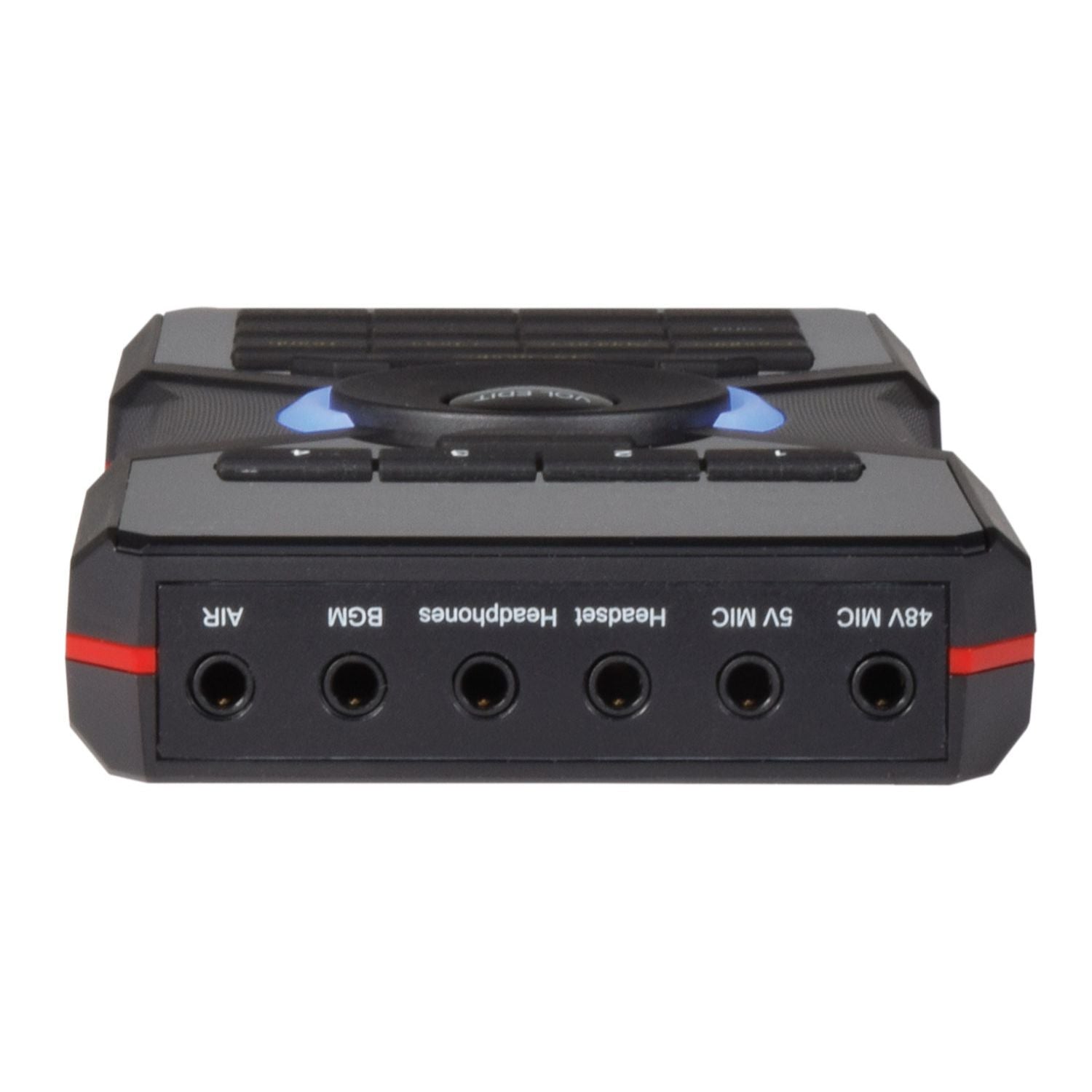

• 3.5mm sockets for microphones, headset, phones, BGM and AIR
• Inputs with 5V or 48V phantom power

• Power source: 3000mAh Li-ion battery or USB 5Vdc 2A

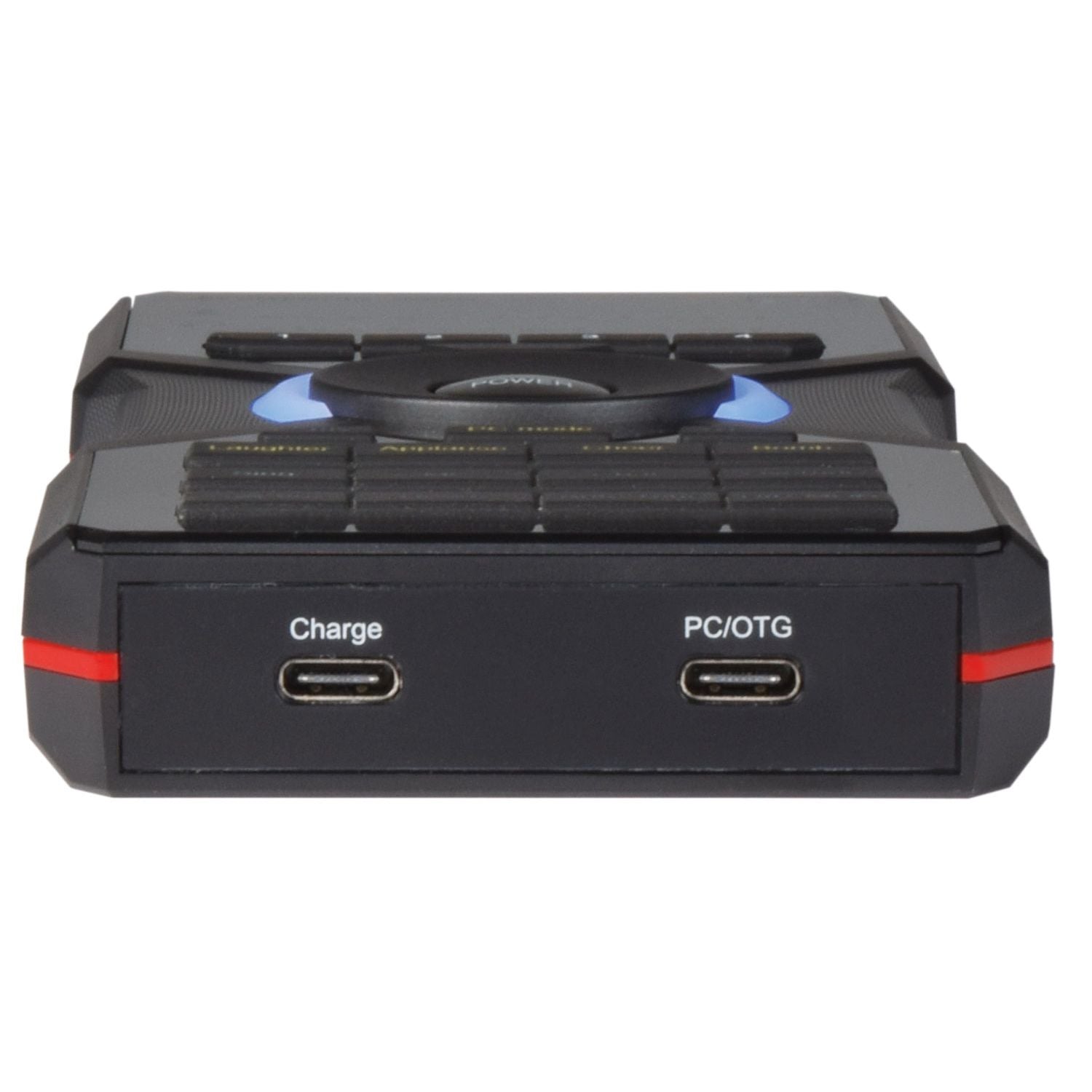

• USB: USB-C (PC/OTG - audio v.1.1) + USB-C (charge)
• DSP sample rate: 48kHz, 16-bit (S/N 98dB)
• Microphone : inputs 3 x 3.5mm jack (Mic.1, Mic.2, headset)
• Input impedance : mic 2.2k Ohms (Mic.1), 10k Ohms (Mic.2 & headset mic)
• Sensitivity : mic -36dB (Mic.1), -26dB (Mic.2 & headset mic)
• Sensitivity : line -2dB
• Phantom power: +48V (Mic.1), +5Vdc (Mic.2 & headset mic)
• Frequency response: 100Hz-16kHz (mic), 20Hz-20kHz (line in) ±1dB
• S/N ratio: ≥90dB (mic), ≥96dB (line in)
• Dynamic range: ≥92dB (mic), ≥98dB (line in)
• THD: ≤0.05% (mic), ≤0.02% (line in) @1kHz
• Line input: 3.5mm stereo BGM input
• Gain: Line in 12dB max.
• Smart phone audio connection: 3.5mm TRRS jack (or via USB-C)
• Headphone : connector 3.5mm stereo jack
• Headphone : impedance 16-300 Ohms
• Headphone : power 100mW @16 Ohms (1kHz, ≤0.1% THD)
• Dimensions:162 x 78 x 21mm
• Weight: 280g
