Yamaha

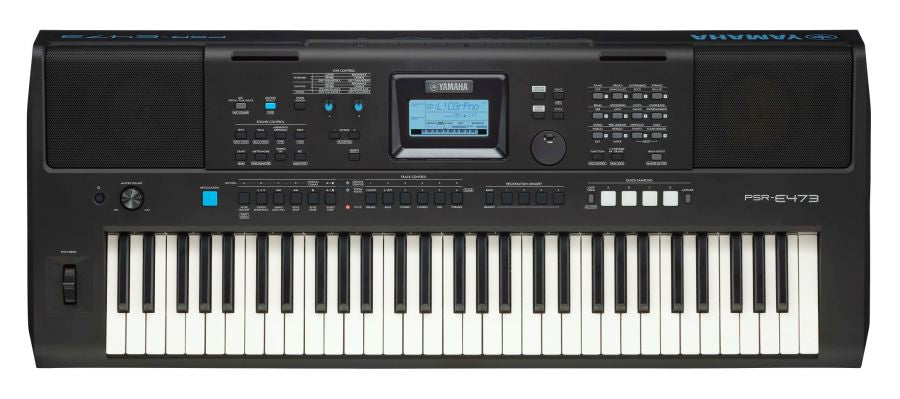

PSR-E473 Portable Keyboard 61 Keys

PSR-E473 Portable Keyboard 61 Keys

£439.00 GBP
£468.00 GBP £439.00 GBP
Sale Sold out
Tax included.

The touch-sensitive keyboard and powerful sound engine of the PSR-E473 bring together superb sound and great feel in an all-new portable instrument.

Yamaha revamped the control panel and LCD, phased out the numeric keypad, added Direct Category Access buttons.

The optimized control panel makes it quick and easy to access Voices, Styles and functions so that you can focus your time on being creative.


With dedicated buttons, Quick Sampling, and innovative Motion Effect functionality, you can intuitively express the sounds you‘re hearing in your head.

View full details

Extra infomation

Explore

Features

Live Control Knobs
The two Live Control Knobs make it easy to manipulate and interact with the sound you produce as you play. The ability to set the filter cut-off frequency to change the brightness of the sound and control effects in real time helps bringing your performances to life.

Groove Creator & Quick Sampling
With Groove Creator, buttons and knobs are all you need to create contemporary electronic music and sound like a pro.

Specification

Size/Weight

Width: 992mm (39-1/16”)
Height 404mm (15-7/8”)
Depth: 136mm 5-3/8”)
Weight: 7.0kg (15lb, 7oz) not including batteries
Control Interface

Keyboard
Number of Keys: 61
Touch Response: Soft, Medium, Hard Fixed
Other Controllers
Pitch Bend Wheel: Yes
Knobs: 2
Panel
Language: English
Voices

Tone Generation
Tone Generation Technology: AWM Stereo Sampling
Polphony
Number of Polyphony (Max.): 64
Preset
Number of Voices: 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
Compatibility
XGlite
Effects

Types:
Reverb: 12
Chorus: 5
Master EQ: 4
DSP: DSP1:41 DSP2:12
Accompaniment Style

Preset
Number of Styles: 290
Fingering: Multi-finger, Smart Chord
Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
External Styles: 10
Other Features
One Touch Settings (OTS): Yes
Compatibility: Style File Format (SFF)
Groove Creator

Preset
Number of Grooves: 35
Number of Sections: 5 (4 Sections + 1 Musical Climax/Ending)
Songs (MIDI)

Preset
Number of Preset Songs: 30
Recording
Number of Songs: 10
Number of Tracks: 6 (5 Melody + 1 Style/Groove Creator)
Data Capacity: Approx. 19,000 notes (when only “melody” tracks are recorded)
Data Format
Playback: SMF Formats 0&1
Recording: Original File Format (SMF 0 conversion function)
USB Audio Recorder

Recording Time (max): 80 minutes (approx. 0.9GB) per song
Format
Playback: WAV(44.1 kHz, 16 bit, stereo)
Recording: WAV(44.1 kHz, 16 bit, stereo)
Quick Sampling

Sampling Type: Oneshot, Loop
Samples (Preset/User): 4
Sampling Time: Approx. 9.6sec
Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
Sampling Format: Original File Format (16 bit, stereo)
Sampling Rate: 44.1kHz
Functions

Voices
Dual Split: Yes
Split: Yes
Harmony: 26
Arpeggio: 152
Articulation: Yes
Registration Memory
Number of Buttons: 9
Control: Freeze
Overall Controls
Metronome: Yes
Tempo Range: 11 - 280
Transpose: -12 - 0 - +12
Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2Hz increments)
Octave Button: Yes
Scale Type: 5 types
Miscellaneous
PIANO Button: Yes
Demo: Yes
Melody Suppressor: Yes
Crossfade: Yes
USB Audio Interface: 44.1 kHz, 16 bit, stereo
Motion effect: 57
Mega Boost: 2 steps (approx. +3 dB, and +6 dB)
Storage and Connectivity

Storage
Internal Memory> Approx. 1.72MB
External Drives: USB flash drive
Connectivity
DC IN: 12V
Headphones: Standard stereo phone jack
Microphone: Yes
Sustain Pedal: Yes
AUX IN: Yes Stereo Mini Jack
AUX OUTPUT: Standard stereo phone JACKS [L/L+R] [R]
USB TO DEVICE: Yes
USB TO HOST: Yes
Sound System

Amplifiers: 6W + 6W
Speakers: 12cm x 2
Power Supply

AC Adapter: V PA-150 or an equivalent recommended by Yamaha (Output : DC 12V, 1.5 A)
Batteries: Six 1.5 V “AA” size alkaline (LR6), manganese (R6) or six 1.2 V “AA” size Ni-MH rechargeable batteries (HR6)
Power Consumption: 9 W (When using PA-150 AC adaptor)
Auto Power Off: Yes
Accessories:

Owner’s Manual
AC adaptor (PA-150 (PSR-E473)/ PA-300C (PSR-EW425) or an equivalent recommended by Yamaha)
Music Rest
Online Member Product Registration
Separately Sold Accessories (May not be available depending on you area)

Keyboard Stand: L-2C (PSR-E473)
Headphones: HPH-150/HPH-100/ HPH-50
Subwoofer: KS-SW100
Footswitch: FC4A/FC5
Wireless MIDI adaptor: UD-BT01

  • Yamaha MusicSoft

    One-stop solution for MusicStore content purchasing, transferring and backing up! MusicSoft Manager enable you to directly access the Yamaha MusicStore from your iPhone, iPad and iPod touch, purchase contents and then transfer to your instrument making it easier to practice and play your favourite songs. *The shop is available in the US, Germany, UK, Netherland, Switzerland, Belgium, Austria, Luxemburg.

  • Yamaha Chord Tracker

    Discover the chords in audio tracks instantly with the Yamaha Chord Tracker app!

  • Yamaha Piano Diary

    Piano Diary is a free Core MIDI application designed to easily record, archive and share your daily piano performances.
Yamaha Keyboards

An extensive library of high quality sounds

Newly developed tone generator that delivers stunning improvements in sound quality as well as high-quality effects. You can enjoy a comprehensive library of instrument Voices perfect for playing in any genre you choose.

Yamaha Keyboards

Experience the joy of playing

With a range of effects and touch sensitivity that allows you to add delicate nuances to your performance, Yamaha has impressive expressive capabilities. It also comes with an auto accompaniment function that provides backing in a variety of musical genres from around the world, such as jazz, R&B, and Latin.

Yamaha Keyboards

Lesson functions to help beginners progress

Use the lesson functions to enjoy playing the built-in Songs with ease. These convenient lesson functions will help you to practice the built-in Songs and improve your playing skills. The lesson functions are arranged for optimum, enjoyable learning, so just select the one that's suitable for you, and take your keyboard skills to the next level.
