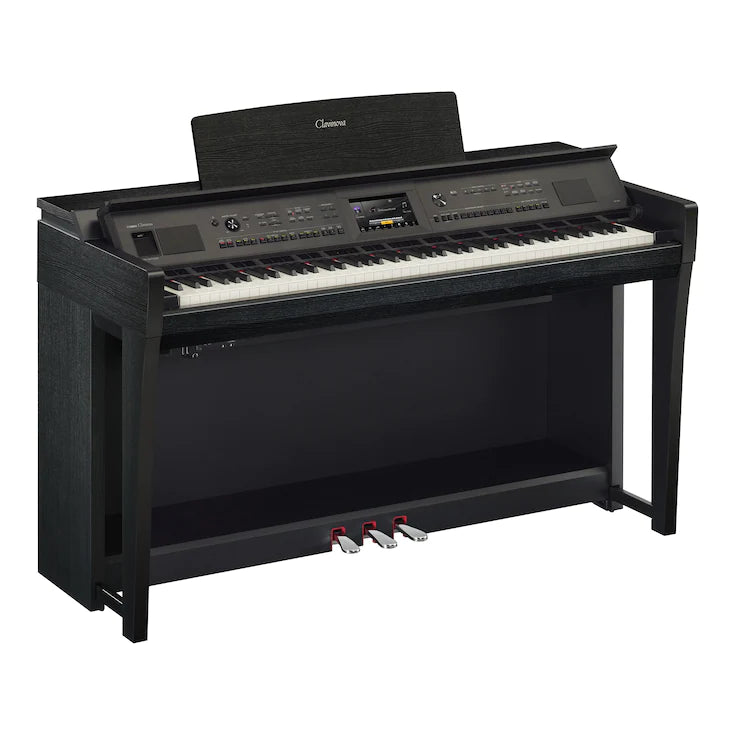

CVP-805B Clavinova Black Finish DISPLAY ONE ONLY

Two world class concert grands in one digital piano
The Yamaha CFX, our flagship 9’ concert grand piano, offers sparkling highs and a powerful resonant bass with a sound that projects to the furthest reaches of any concert hall. The Bösendorfer Imperial is a piano known throughout its long history for its classic Viennese sound. Both are outstanding pianos characterized by distinctive traits of power, versatility, subtlety and lightness. Both are found only in a Clavinova digital piano.


VRM physical modeling—the distinctive reverberation generated by the entire body of a concert grand piano
In a grand piano, sound resonates throughout the body of the instrument, producing a rich reverberation that envelops the listener in sound. This phenomena is reproduced perfectly in the Clavinova through Virtual Resonance Modeling (VRM). It calculates the various states of the strings for each of the 88 notes on the keyboard, from one instant to the next, and timing and depth of damper pedals pressed. This technology allows for vivid, bright, richly-varied expression that reflects the limitless number of factors inherent in piano performance.


From staccato to legato—superbly expressive sound that responds to the player’s touch
Featuring Yamaha Smooth Release technology, Clavinova offers the crisp tone heard when playing staccato as well as the lingering sound produced by releasing the keys more. This provides finely-nuanced response to the pianist’s playing.


Smooth tonal transformations perfectly matched to key pressure
Sound in an acoustic piano attenuates over a long time. Pianists can change the volume of the sound—as well as its dynamics—to achieve both mellow and bright tones by simply changing the pressure they apply to the keys.

The Clavinova features long, carefully-sampled recordings of notes on a piano, reproduces them in rich detail and utilizes unique Yamaha technologies to achieve smooth tonal transitions in response to the touch of the player.

Additionally, the Clavinova has been repeatedly tested and adjusted by numerous pianists in order to attain a performance feel similar to that of a grand piano.

Key-Off samples
The moment a pianist’s fingers are lifted from the keys of a grand piano, subtle changes occur in the instrument’s tone as the damper is lowered onto the strings to mute its sound. Key-Off samples features actual recordings of these changes, offering a faithful reproduction of the most subtle changes in the piano’s sound, allowing for a more realistic performance.


A fully immersive concert grand experience—even with headphones
Yamaha’s advanced binaural sampling technology uses samples from the CFX, Yamaha’s acclaimed concert grand piano, recorded with specialized microphones that capture locational information and other nuances discerned by the human ear. The resulting sound is so natural, so enveloping, that you’ll soon forget you’re even wearing headphones at all.

Once you choose the Yamaha CFX Grand Voice and put headphones on, the binaural sampled sound is automatically ready and no additional settings are required. Now with or without headphones, you can fully enjoy the concert grand experience at home.


The Stereophonic Optimizer—a new kind of headphone experience
When using headphones, the Stereophonic Optimizer lets players enjoy the dispersed sound heard when sitting in front of an acoustic piano. With the Stereophonic Optimizer, Voices sampled from acoustic pianos* appear to come from the body of the instrument. This provides a comfortable, natural experience that removes the drawbacks of performing with headphones.

* The CFX Voice utilizes binaural sampling technology

Size/WeightDimensionsWidthHeightDepthWeightWeightPacking BoxWidthHeightDepthControl InterfaceKeyboardNumber of KeysTypeTouch Sensitivity88-key Linear Graded HammersCounterweightPedalNumber of PedalsHalf PedalFunctionsGP Response Damper PedalDisplayTypeSizeLCD BrightnessTouch ScreenColorScore Display FunctionLyrics Display FunctionText Viewer FunctionLanguagePanelLanguageCabinetKey CoverKey Cover StyleMusic RestMusic ClipsVoicesTone GenerationPiano SoundBinaural SamplingKey-off SamplesSmooth ReleaseVirtual Resonance Modeling (VRM)PolyphonyNumber of Polyphony (Max.)PresetNumber of VoicesFeatured VoicesCustomVoice EditCompatibilityEffectsTypesReverbChorusMaster CompressorMaster EQPart EQIntelligent Acoustic Control (IAC)Stereophonic OptimizerInsertion EffectVariation EffectVocal HarmonyFunctionsDual/LayersSplitAccompaniment StylesPresetNumber of Preset StylesFingeringStyle ControlCustomStyle CreatorOther FeaturesMusic FinderOne Touch Setting (OTS)Style RecommenderChord LooperFile FormatSongsPresetNumber of Preset SongsRecordingNumber of TracksData CapacityRecording FunctionCompatible Data FormatPlaybackRecordingFunctionsDemoRegistrationNumber of ButtonsControlPlaylistNumber of RecordsLesson/GuideLesson/GuideGuide LampPerformance Assistant Technology (PAT)Piano RoomUSB Audio RecorderPlaybackRecordingUSB AudioTime StretchPitch ShiftVocal CancelMiscellaneousMetronomeTempo RangeTransposeTuningScale TypeDisplay OutBluetoothStorage and ConnectivityStorageInternal MemoryExternal DrivesConnectivityHeadphonesMicrophoneMIDIAUX INAUX OUTAUX PedalUSB TO DEVICEUSB TO HOSTAmplifiers and SpeakersAmplifiersSpeakersPower SupplyPower ConsumptionAccessoriesAccessories
CVP-805
Size/Weight
Dimensions Width 1,420 mm (55-15/16") (Polished finish: 1,423 mm (56-0"))
Height 868 mm (34-3/16") (Polished finish: 871 mm (34-5/16"))
Depth 592 mm (23-5/16") (Polished finish: 593 mm (23-3/8"))
Weight Weight 80 kg (176 lb, 6 oz) (Polished finish: 84 kg (185 lb, 3 oz))
Packing Box Width 1,551 mm (61-1/16")
Height 708 mm (27-7/8")
Depth 736 mm (29")
Control Interface
Keyboard Number of Keys 88
Type GrandTouch™ Keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement
Touch Sensitivity Hard2, Hard1, Medium, Soft1, Soft2
88-key Linear Graded Hammers Yes
Counterweight -
Pedal Number of Pedals 3
Half Pedal Yes
Functions Sustain, Sostenuto, Soft, Glide, Song Play/Pause, Style Start/Stop, Volume, etc.
GP Response Damper Pedal -
Display Type TFT Color LCD
Size 7.0 inch (800 x 480 dots)
LCD Brightness Yes
Touch Screen Yes
Color Yes
Score Display Function Yes
Lyrics Display Function Yes
Text Viewer Function Yes
Language English, Japanese, German, French, Spanish, Italian
Panel Language English only
Cabinet
Key Cover Key Cover Style Folding
Music Rest Yes
Music Clips Yes
Voices
Tone Generation Piano Sound Yamaha CFX, Bösendorfer Imperial
Binaural Sampling Yes (CFX Grand Voice only)
Key-off Samples Yes
Smooth Release Yes
Virtual Resonance Modeling (VRM) Yes
Polyphony Number of Polyphony (Max.) 256
Preset Number of Voices 1,315 Voices + 49 Drum/SFX Kits + 480 XG Voices
Featured Voices 14 VRM Voices, 227 Super Articulation Voices
Custom Voice Edit Yes
Compatibility XG, GS (for Song playback), GM, GM2
Effects
Types Reverb 65 Preset + 30 User
Chorus 106 Preset + 30 User
Master Compressor 5 Preset + 30 User
Master EQ 5 Preset + 30 User
Part EQ 27 Parts
Intelligent Acoustic Control (IAC) Yes
Stereophonic Optimizer Yes
Insertion Effect 322 Preset + 30 User
Variation Effect 322 Preset + 30 User
Vocal Harmony 54 Preset + 60 User
Functions Dual/Layers Yes
Split Yes
Accompaniment Styles
Preset Number of Preset Styles 525
Fingering Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
Custom Style Creator Yes
Other Features Music Finder -
One Touch Setting (OTS) 4 for each Style
Style Recommender -
Chord Looper Yes
File Format Style File Format (SFF), Style File Format GE (SFF GE)
Songs
Preset Number of Preset Songs 50 Classics + 303 Lesson Songs + 50 Popular
Recording Number of Tracks 16
Data Capacity approx. 3 MB / Song
Recording Function Yes
Compatible Data Format Playback SMF (Format 0 & 1), XF
Recording SMF (Format 0)
Functions
Demo Yes
Registration Number of Buttons 8
Control Registration Sequence, Freeze
Playlist Number of Records 2,500 Records
Lesson/Guide Lesson/Guide Follow Lights, Any Key, Karao-Key, Your Tempo
Guide Lamp Yes
Performance Assistant Technology (PAT) Yes
Piano Room Yes
USB Audio Recorder Playback WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
Recording WAV (44.1kHz, 16bit, stereo), MP3 (MPEG-1 Audio Layer-3)
USB Audio Time Stretch Yes
Pitch Shift Yes
Vocal Cancel Yes
Miscellaneous Metronome Yes
Tempo Range 5 - 500, Tap Tempo
Transpose -12 - 0 - +12
Tuning 414.8 - 440 - 466.8 Hz (approx. 0.2 Hz increments)
Scale Type 9
Display Out Yes* (by using a commercially available USB display adaptor**)
Bluetooth Yes (Audio)
Storage and Connectivity
Storage Internal Memory approx. 2 GB
External Drives USB Flash Drive
Connectivity Headphones Standard stereo phone jack (x2)
Microphone Input Volume, Mic / Line In
MIDI IN / OUT / THRU
AUX IN Stereo mini
AUX OUT L / L + R, R
AUX Pedal Yes
USB TO DEVICE Yes (x 2)
USB TO HOST Yes
Amplifiers and Speakers
Amplifiers (45 W + 20 W) x 2
Speakers (16 cm + 2.5 cm (dome)) x 2
Power Supply
Power Consumption Power consumption is described on or near the name plate, which is at the bottom of the unit.
Accessories
Accessories Headphones (HPH-150/HPH-100/HPH-50), Footswitches (FC4A/FC5), Foot controller (FC7), USB wireless LAN adaptor (UD-WL01), Wireless MIDI adaptor (MD-BT01/UD-BT01)
